VIC-8P360NI-40

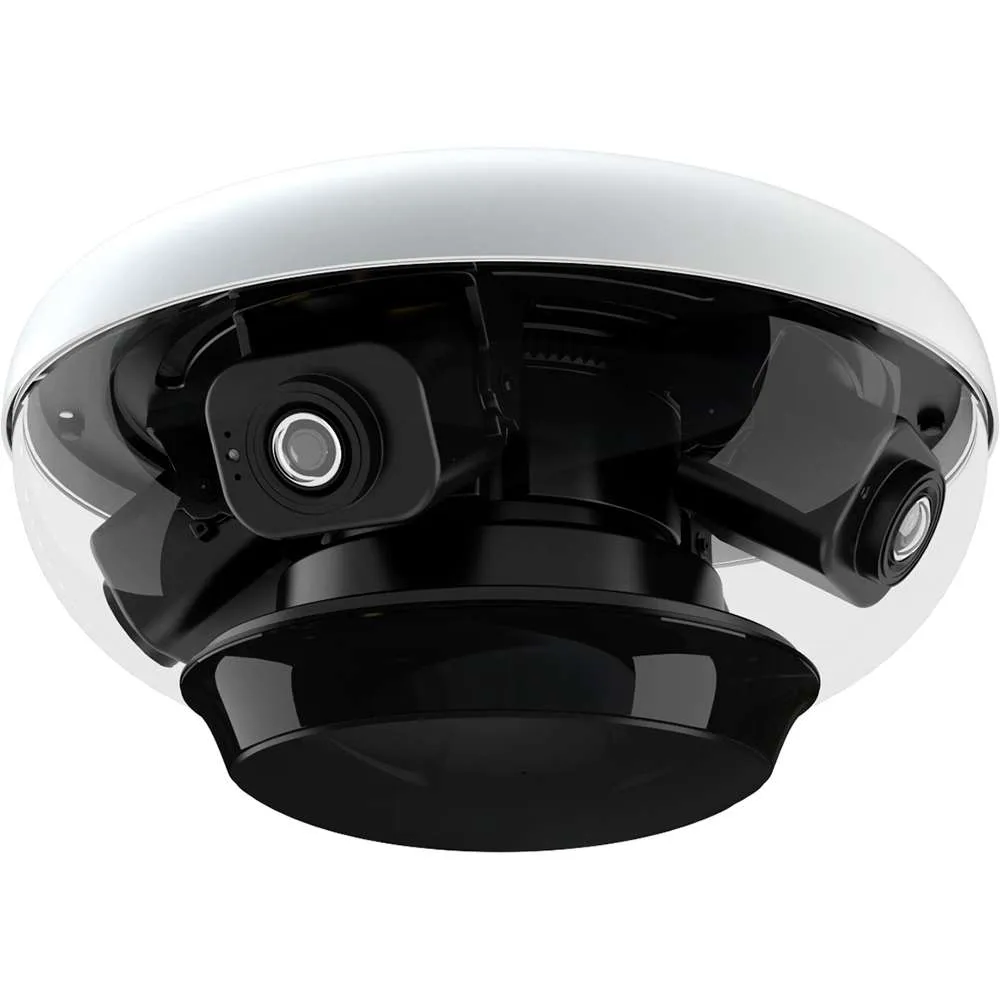

• One dome camera contains 4 modules, each to different direction, equalto 4 sets of IP-Camera.
• One IP address, One Cable(PoE+),One bracket, reduces TOC(total owner cost)
• Each module could circularly slide 0°~95°and vertically rotate 30°~70°.
• Each module delivers max 2M (1920x1080P) full HD @25/30fps video stream.
• True starlight technology provides vivid color at most scenarios.
• 360°(H)x90°(V) circular IR illumination, up to 25m in radius.
• VCA: face, human/vehicle detection, intrusion, line crossing, etc.
• Alarm driven by multi-rules: cross line, intrusion, device error, etc.
• ONVIF specifications, interoperability between network video products regardless of manufacturer.
• Full Interface:RJ45, SD Card, Alarm, Audio, Reset
• – 30°C~55°C(-22 °F ~ 131 °F),IP66 waterproof, IK10 vandal resistant, 6KV TVS lightning.
• Support PoE+(802.3.at, class4) and DC24V / AC24V

Downloads

• Specification Sheet
