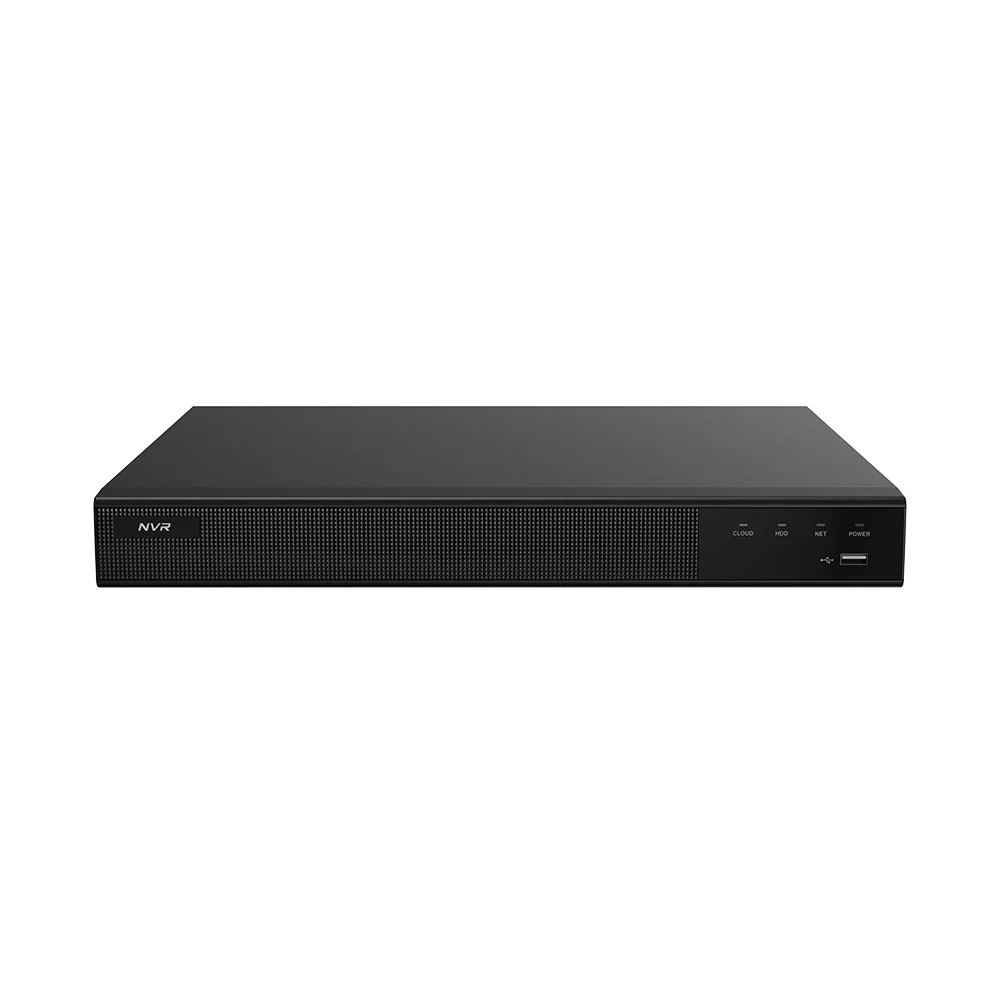

UVIN-12232-P16

[UV-NVR, 12MP, 32CH, 256Mbps, 2HDDs, 16POE]

  • 32ch real-time recording & playback simultaneously

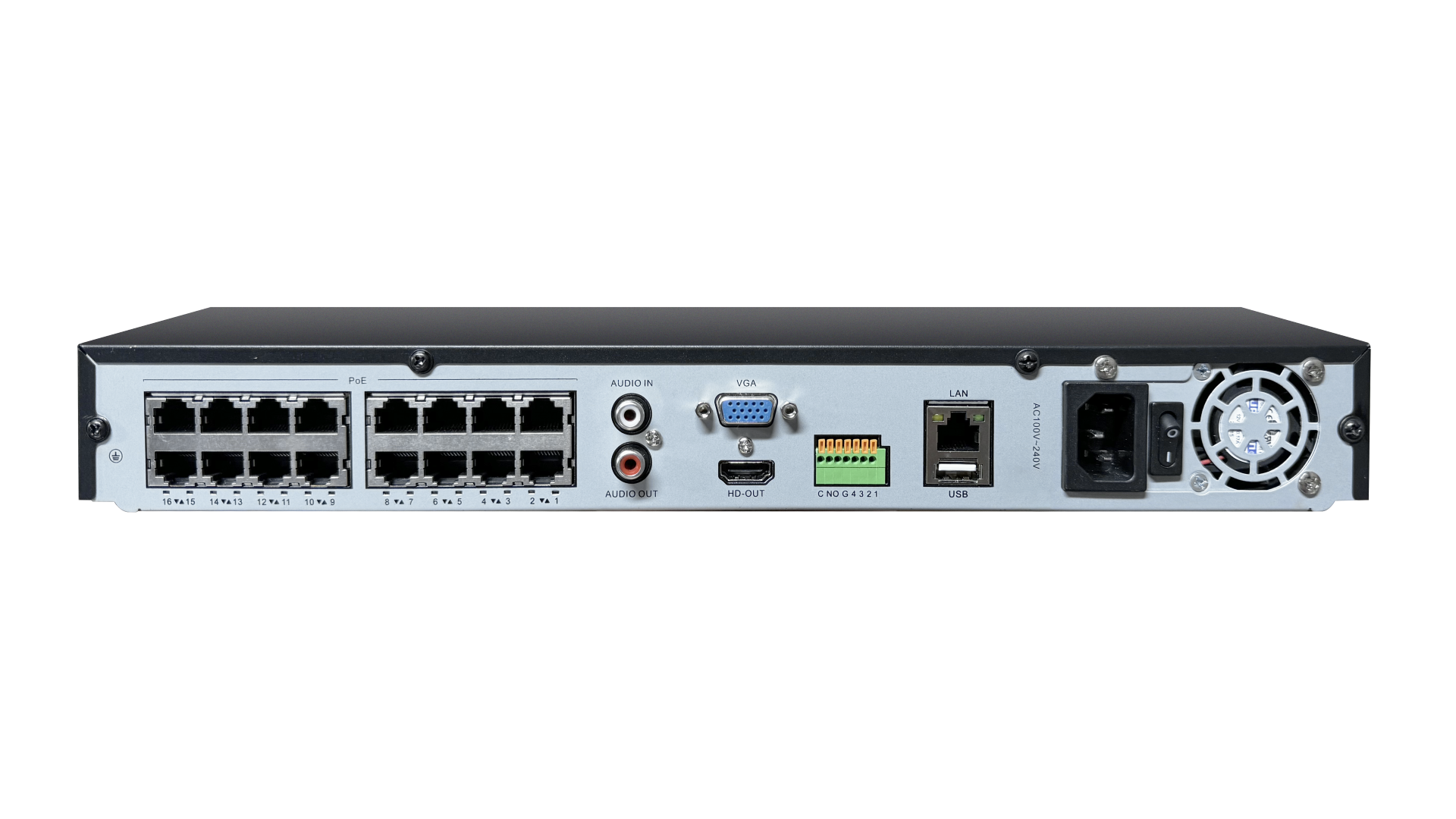

  • 16 PoE Ports
  • 256Mbps recording bandwidth
  • Max. 12M IPC input / 4K output(HDMI) & VGA
  • Support ONVIF Profile S
  • Support H.264, H.265 Dual Codec
  • 2 internal SATA HDD
  • Alarm I/O 4/1, Audio I/O 1/1
  • Plug & Play With SMD, Intrusion Detection, Line Crossing Detect Area, Loitering Detection, People Gathering Detection, Ilegal Parking, Face Detection
  • Support Remote DVR (Remote DVR/NVR control)
Categories: ,

Description

System
Main Processor Quad Cortex A53
Operating System Embedded LINUX
Video
Input 32ch(16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF)
Output 1*HD,1*VGA
Audio
Input 1 Port RCA, support 32CH IPC audio input
Output 1 Port RCA(Linear, 1kΩ), HD output
Audio Bit Rate 64kbps
Audio Compression standard G711U, G711A, AAC, MP2L2
Intercom support (two-way)
Alarm
Sensor Input 4CH
Output 1CH
Motion Detection 32Channel, MD Zones: 396 (22 × 18)
Trigger Events Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center, Alarm Output
Display
HD Output1 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
HD Output2 N/A
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 36CH/25CH/17CH/16CH/13CH/10CH/9CH/8CH/6CH/4CH/2CH/1CH
Digital Zoom YES
OSD Camera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video Compression H265/H264/H265+/H264+
Resolution 16MP(7680×2160)12MP(4000×3000),8MP(3840×2160),6MP(3072×2048),5MP(2592×1944),4MP(2688×1520/2560×1440),
3MP(2048×1536),1080P(1920×1080),1280×1024,960P(1280×960),720P(1280×720),960H(960×480),D1 (720×576/720×480)
Record Rate PAL :16MP@25CHx20fps,12MP@25CHx25fps,8MP@32CHx25fps,5MP@32CH×25fpss,4MP@32CHx25fps,
3MP@32CH×25fps,1080P@32CH×25fps, 960P@32CH×25fps,720P@32CH×25fps, D1@32CH×25fps
NTSC: 16MP@25CHx20fps,12MP@25CHx30fps,8MP@32CHx30fps,5MP@32CH×30fps,4MP@32CH×30fps,
3MP@32CH×30fps,1080P@32CH×30fps, 960P@32CH×30fps, 720P@32CH×30fps, D1@32CH×30fps
Record Mode Manual\Timer\Motion Detection\ Alarm\Smart Event
Playback & Backup
Local Sync Playback 1CH 16MP@25fps, 2CH 12MP@30fps,4CH 8MP@30fps,6CH 5MP@30fps,
8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps
Decode Capability 1080P(1920×1080)@480fps
Remote Sync Playback YES
Search Mode ALL, Timing Video, Motion Detection, Alarm,Tag  search,Smart Event,Pictrue,Log
Playback Functions Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
Backup Mode USB Device/Network
Network
Interface 1xRJ45 10M/100/1000MAdaptive Ethernet Interface
Incoming Bandwidth 256Mbps
Outgoing Bandwidth 160Mbps
Network Functions IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE, SNMP
Onvif Profile S, Profile T
Web Browser Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
Cloud Support Yes
Smart Phone iPhone,  Android
POE 16 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W,
Support Plug and Play, Support network cable extended mode Max. 200M
WIFI N/A
Storage
Interface Type 2 SATA Hard Disk Interface (3.5″ SATA)
Capacity Up to 10 TB capacity for each HDD
eSATA N/A
General
Language  UI Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean,
Dutch, Greek, Janpanese, Ukrainian, Kazakh
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
RS485 N/A
Power consumption 100-240VAC , 50/60Hz   ≤15W(Without Hard Disk and POE)
Working Environment -10℃～50℃, 10%～90%(humidity)
Product Dimension(W×D×H) 380 x 316 x 51mm
Net Weight 2.58kg(without HDD)
Gross Weight 3.48≤ kg(without HDD)
