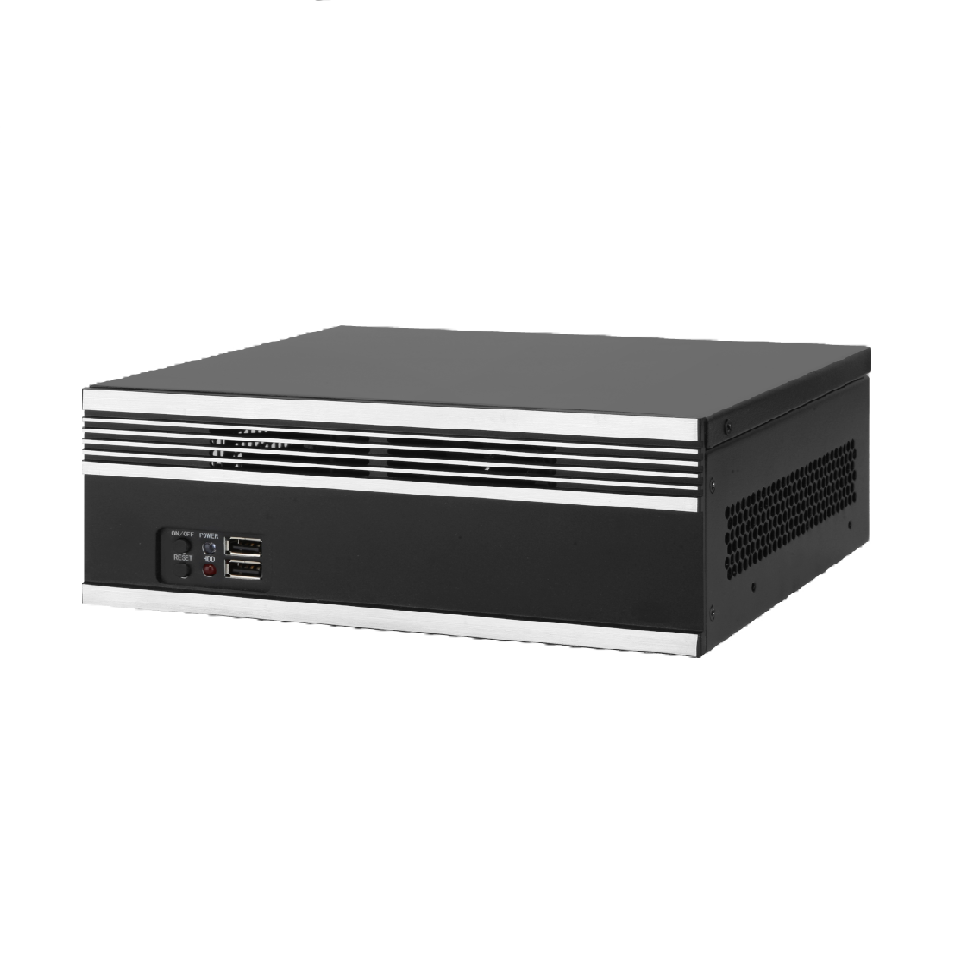

PCN-CMS-SH

[Central Monitoring Server, CMS Station, Made in Korea]

  • Access up to 131,072 cameras (1024 x 128ch)
  • Efficient management with multi-streaming support
  • Event-based live monitoring support

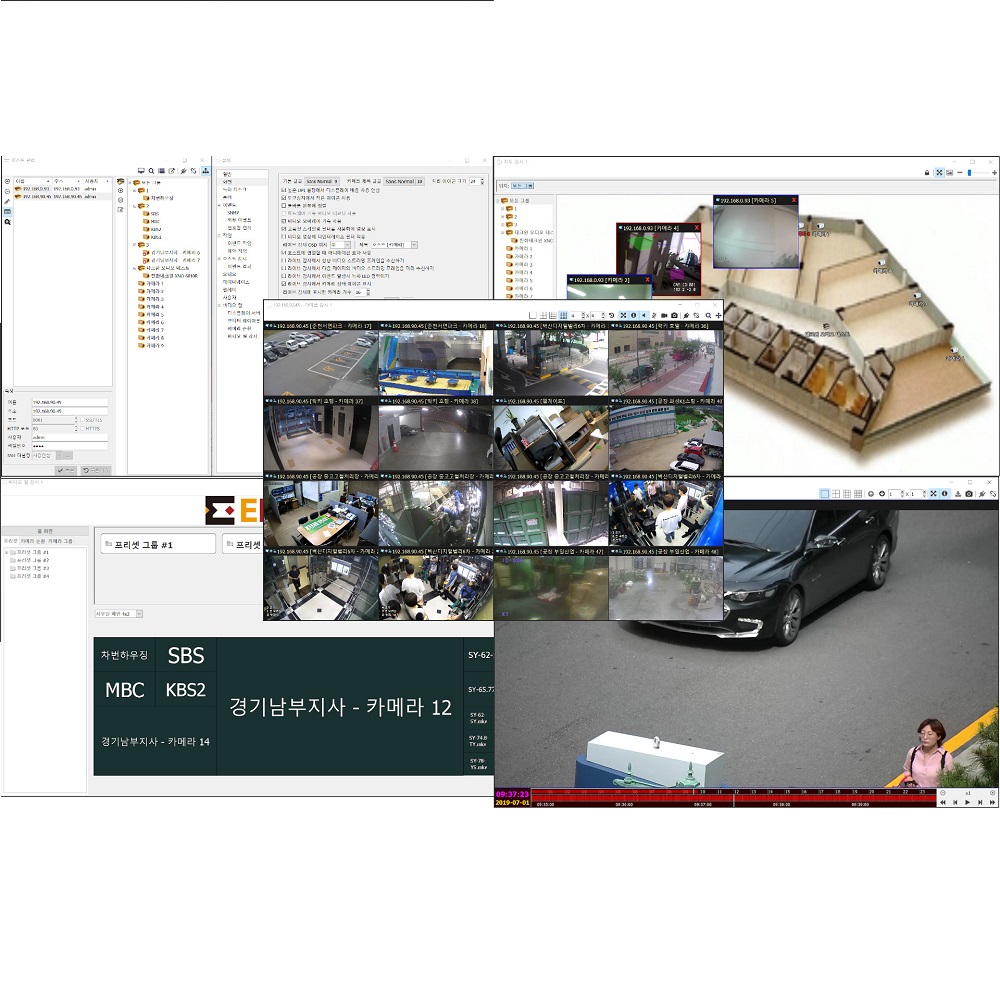

  • E-MAP function allows camera position to be displayed on the map and corresponding video
  • Remote search, remote backup (manual, schedule)
  • Event-driven intelligent response programmability
  • Multi-site automatic / manual warning sound transmission (broadcast) function
  • Change camera settings
  • System health monitoring (Real Time Health Check)
  • PTZ control available
  • VNC connection support for remote configuration
  • PCN-NDS Series Video Wall System Control
  • Made in Korea
Categories: ,

Description

Model PCN-CMS-SH
CMS Version Default CMS Basic Version(8 host)
Options 16/64/128/256/512/1024 Host
Operating System Ubuntu 22.04 with modified Linux Kernel, OpenGL and X-Windows
CPU Intel Daul Core 1.8GHz
RAM DDR4 16G RAM(8G*2EA)
VGA Integrated Graphic (included 48 Execution Unit)
Disk M.2 SSD 128G
Display Monitor
Output		 2xHDMI(up to 4K 60Hz support)
Mode Various display mode and full screen mode like 1×1, 1×2, 2×1, 2×2, 3×3
Performance Full HD 32ch at the same time decoding
Search /
Replay		 Method Date / Time Calendar Search, Individual / Channel Bundle Search, Event Search
Replay
Control		 Forward direction (high speed: x1 ~ x32), Step forward / backward
Backup Mode Video, Still Image
File Format MP4, JPG, Encrypted Back up
Video Wall EMSTONE IP Video Wall System Setup / Control
Event Type Motion Detection, Sensor, Relay, Disk Failure, Camera Signal Loss / Recovery, Emergency Bell, License Plate Recognition, POS, Elevator CRT, Fire / Smoke Detection, Abnormal Sound Detection, Thermal Imaging Camera
Action Alarm Digital-out, Pop-up Camera, Alarm Sound, Warning Message, Preset Control, IP Video Wall Control (Video / Image / Text Output Control, Preset)
Network Interface 10/100/1000 Base-Tx Ethernet (RJ45) – 2ea
Bandwidth
Control		 Automatic, Manual
Operating Temp / Humidity +5℃~+40℃ / 0% ~ 90%
Power Supply / Current DC12V 5A
Dimension (W x H x D) 224(W) x 88.8(H) x 200(D) mm
Weight Approx. 2.7 kg

※ USB type product should be used when KVM switches are used. (PS/2 type not available)
※ The specification of this product may change without prior notice.
 4 / 6 / 7 /
9 / 10 / 13 / 16		 1 / 2 / 4 / 6 / 7 /
9 / 10 / 13 / 16 / 25
Live/Search Supported Max.12M
Performance
(CH/fps)		 12M(1CH/15fps)
8M(1CH/30fps)
5M(2CH/60fps)
1080P(4CH/120fps)		 12M(1CH/30fps)
8M(2CH/60fps)
5M(4CH/120fps)
1080P(9CH/270fps)		 12M(2CH/60fps)
8M(4CH/120fps)
5M(6CH/180fps)
1080P(16CH/480fps)		 12M(3CH/90fps)
8M(4CH/120fps)
5M(6CH/240fps)
1080P(25CH/750fps)
Recording Mode Continuous / Scheduled / Events
Performance Max. 500Mbps
CIF~12MP
Compression H.265 / H.264 / MPEG4 / MJPEG
Search / Replay Mode Date / Time Calendar Search, Channel Bundle Search, Event Search
Replay Control Play forward / backward (fast:x1~x32, slow:1/4~1/2), Step forward / backward

Common Specification

IP Camera Resolution CIF~12M
Protocol Supported ONVIF / RTSP and Axis / Sony / Panasonic / Hanwha Vison / Turen / Dahua / Hikvision etc. over 130+
Operating System Linux 64bit(Embedded) / mSATA SSD 16GB(dedicated for OS, NVR SW)
Storage Default N/A
Available 3.5″ HDD up to 2ea (24TB HDD, Max. 48TB)
RAID
(option)		 Not Supported
Hot Swap Hot Plug supported
External Not Supported
Backup Mode Video (Multiple Channels, Time / Event Subtitle, Encryption), Still Image (Partial Mosaic supported)
File Format MP4, JPG
Event Type Motion Detection, Sensor, Relay, Disk Failure, Camera Signal Loss / Recovery, Emergency Call, LPR, POS, Elevator, Flame / Smoke Detection, Abnormal Sound Detection, Thermal Event, Intelligent Server Integration
Action Recording, Alarm, Camera pop-up, Warning message, Warning sound, E-mail, FTP, Preset
Application PC Live, Search, Backup, Event Manager, E-Map, Multi-monitors, Pan/Tilt/Zoom Control, NVR Setting
Web Live, Pan / Tilt / Zoom for all channels
Mobile iOS / Android Apps
Network Interface 10/100/1000 Base-Tx Ethernet (RJ45) – 1ea
Simultaneous
Access		 1024 (within network bandwidth)
Protocol TCP/IP, UDP, DNS, DDNS, HTTP, NTP, RTP/RTCP, RTSP
Bandwidth
Control		 Automatic, Manual
Security Multi User Level
Failover Supported
Data/Time Synchronization Windows / NTP Time Server Synchronization, Integrated NTP Server, RFTC Synchronization, Self-Synchronization via GPS(option)
Intelligence
Solution		 Built-in EMSTONE AI-based video analysis Flame/Smoke detection each 1CH (※ Additional License Option)
External Elevator CRT Servers, EM-Call Servers, LPR Servers, LPR Cameras, Flame/Smoke Detect Servers
Operating Temp / Humidity 5℃~40℃ / 0%~90%
Power Supply / Current DC12V 5A Adapter (AC100 ~ 240V 50/60Hz)
Dimension (W x H x D) 430.0(W) Ⅹ 44.5(H) Ⅹ 249.5(D)mm
Weight 3.66kg (without HDDs)

※ USB type product should be used when KVM switches are used. (PS/2 type not available)
※ The specification of this product may change without prior notice.
