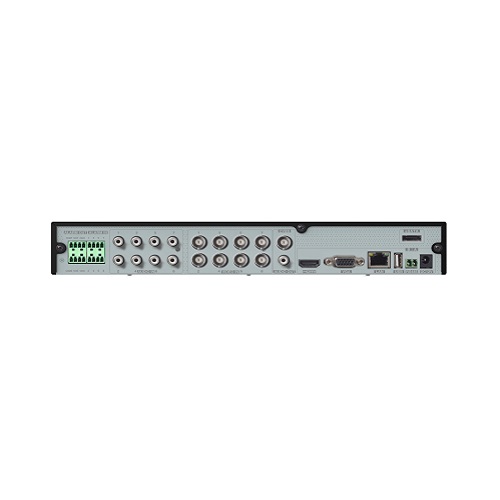

KWTD-5108

[KW Series TVI/AHD DVR, 5MP, 8CH, 1 HDD, Made in Korea]

  • Analog 2M(Full-Frame) / 4M / 5M 4CH DVR
  • Analog : AHD(5M/4M/2M), TVI(5M/4M/2M), CVBS(960H, SD)
  • IP(Ethernet) : Onvif, WESP / H.264, H.265
  • 1 Internal SATA HDD
  • Service channel, Remote DVR
  • VMS(Control Center), Mobile App(WebEye), HTML5 WebViewer
  • Made in Korea
Categories: ,

Description

Up to 5M image support
Full-HD image Full-Frame support and can be stored up to 5M resolution for clearer monitoring of wider areas and distant images



Analog All in One DVR
Various video inputs such as TVI(4M/2M), AHD(4M/2M), CVBS, SD and IP (Onvif Profile S) are supported simultaneously
Monitoring, recording, playback, backup and remote control of IP camera or other DVR
Integration with Alarm or Audio of 3rd party’s IPC



UTC(CoC)
Camera control over coax cable
Control camera’s OSD or zoom/focus remotely (DVR, PC) without additional cable construction



Remote DVR　Full control of remote DVR/NVR -Patent Application
Share DVR/NVR’s main output on PC and real-time remote control from DVR/NVR’s OSD menu on PC



Free VMS
Provide Central Monitoring Software (Control Center)for free, supporting Max. 1,024 Units with various and great functions



Made in Korea
Competitive products having reliable quality and reasonable price purely developed and manufactured in Korea.

VIDEO INPUT
Video input format BNC AHD, TVI, CVBS(960H,SD)
IP(Ethernet) H.264, H.265
Protocol : WESP, Onvif Profile S (all ch support)
Resolution / Frame Rate AHD 1280×720@30fps, 1280×720@25fps
1920×1080@30fps, 1920×1080@25fps
2560×1440@30fps, 2560×1440@25fps
2560×1944@20fps, 2560×1944@20fps
TVI 1280×720@30fps, 1280×720@25fps
1920×1080@30fps, 1920×1080@25fps
2560×1440@30fps, 2560×1440@25fps
2560×1944@20fps, 2560×1944@20fps
CVBS(960H) 960×480@60i, 720×480@60i
960×576@50i, 720×576@50i
IP 1st stream: 1280×720~3840×2160
2nd stream: max 720×576
Connectors 8ch, 75Ω BNC connector
CoC Control over Coax@AHD,TVI
VIDEO OUTPUT
Video output Resolution HDMI : 3840×2160, 1920×1080
VGA : 1920×1080, 1280×1024, 1024×768
BNC(CVBS) : 720×480, 720×576
Modes HDMI main + VGA spot
HDMI main + CVBS spot
HDMI/VGA Duplicate
HDMI/CVBS Duplicate
HDMI main + VGA(Service Channel)
HDMI main + CVBS(Service Channel)
BNC(CVBS) 1, 4, 9 split-screen, Switching
RECORDING
Compression H.264 / H.265 / JPEG
Resolution 2560×1944, 2560×1440, 1920×1080, 960×480
Rate Total 240 fps, Max 30fps/ch @ 1280×720
Total 240 fps, Max 30fps/ch @ 1920×1080
Total 120 fps, Max 15fps/ch @ 2560×1440
Total 80 fps, Max 10fps/ch @ 2560×1944
Quality 10 levels up to (Default – Q7)
– H.264 : 4Mbps@2M, 6Mbps@4M, 6Mbps@5M, 8Mbps@8M(*)
– H.265 : 3Mbps@2M, 4Mbps@4M, 4Mbps@5M, 6Mbps@8M(*)
IP Camera Max Bitrate 32Mbps (Main Stream) / 4.8Mbps(Sub Stream)
Mode Normal/Event Record, Schedule/Event Record, Emergency Record
Schedule 24hrs / 7days
PLAYBACK
Mode Instant Playback / Search
Speed Max. 240fps
Search type Date/Time, Calendar/Time-line, Event, Thumbnail(Interval/Motion), Text, Bookmark
Block playback 1day ~ 365days
EVENT & ALARM
Event source Motion detection, Sensor input, Video Loss, Text input, AI, System
Event check schedule 24hrs / 7days
Event action Relay, Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push, System alarm
MD area 15×10
Text input POS/ATM support, AVE VSI Pro/Hydra support
SYSTEM ALARM
Event source HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail
Event action Pop-up Message, Buzzer, E-mail, Relay, Mobile Alarm Push
AUDIO
Input/output 8 RCA input / HDMI & RCA output
Compression G.711
Direction Both
PTZ
Protocols HIK-C, AHD, C1080(D1080), C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic and others
NETWORK
Interface 1 Fast Ethernet (10/100Mbps)
Type Static IP, Dynamic IP
DDNS WNS, DynDNS, NoIP, WRS
Bandwidth limit 1~77Mbps
NTP Server / Client / Both
Users Total 10 Users (Monitor + Playback) Playback 3 Users
RTSP Supported
UPnP UPnP auto port forwarding
Streaming H.264 or H.265 stream, High resolution
1 additional H.264 or H.265 stream, Normal resolution
1 JPEG stream, Normal resolution
Service streaming Service Channel or Remote DVR
TLS Supported
SECURITY
User level 1 admin, 10 users
User privilege Menu, PTZ, Relay, Playback, Power off, Copy, Network MIC, Camera setup
IP filtering Supported
STORAGE & BACKUP
Storage devices 1 internal SATA HDD, 1 external eSATA Interface
RAID Level Not supported
File system High-performance proprietary file system
Data-loss protection against power interrupt
Capacity Max. 128TB with eSATA
20TB HDD Supported per SATA Port
Backup type Multi-channel exe file, Single channel avi file, JPEG(Capture)
Backup device 2 USB 2.0 drive (1 front, 1 rear)
FAT32(Max 32GB), NTFS (Min. 1GB)
S.M.A.R.T. Health checking and alarm, Reallocation sector monitoring and alarm
SERIAL & I/O
Serial port 1 RS-485
Sensor input 8 Dry-contacts + Sensor of IP Camera
Relay output Software-controlled 2 relay outputs
Max 250V AC / 3A, 30V DC / 3A
CONTROLLER
Device IR remote controller, Joystick Keyboard(option), Mouse
SOFTWARE
HTML5 Webviewer Monitoring / Event / PTZ / Playback for browser supporting HTML5
WebViewer Monitoring / Event / PTZ / Playback for IE
Mobile viewer Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android
CMS Control Center, Max. 1024 units
SDK ActiveX(COM) SDK
ENVIRONMENTAL & PHYSICAL
Dimension 300(W) × 249(D) × 45(H) mm
Weight 1.22 Kg (No HDD)
Operating temperature 5°C~45°C (41°F ~ 113°F)
Operating humidity 80% below, free of condensation
Power DC 12V, 3A (Option : DC 12V / 5A**)
(It is highly recommended to use an adapter (option) to use a high capacity HDD with a power consumption of 8W or more.
Please refer the HDD’s specification for power consumption of HDD.)
Power consumption 5W (with out HDD)
Approval KC, FCC, CE
