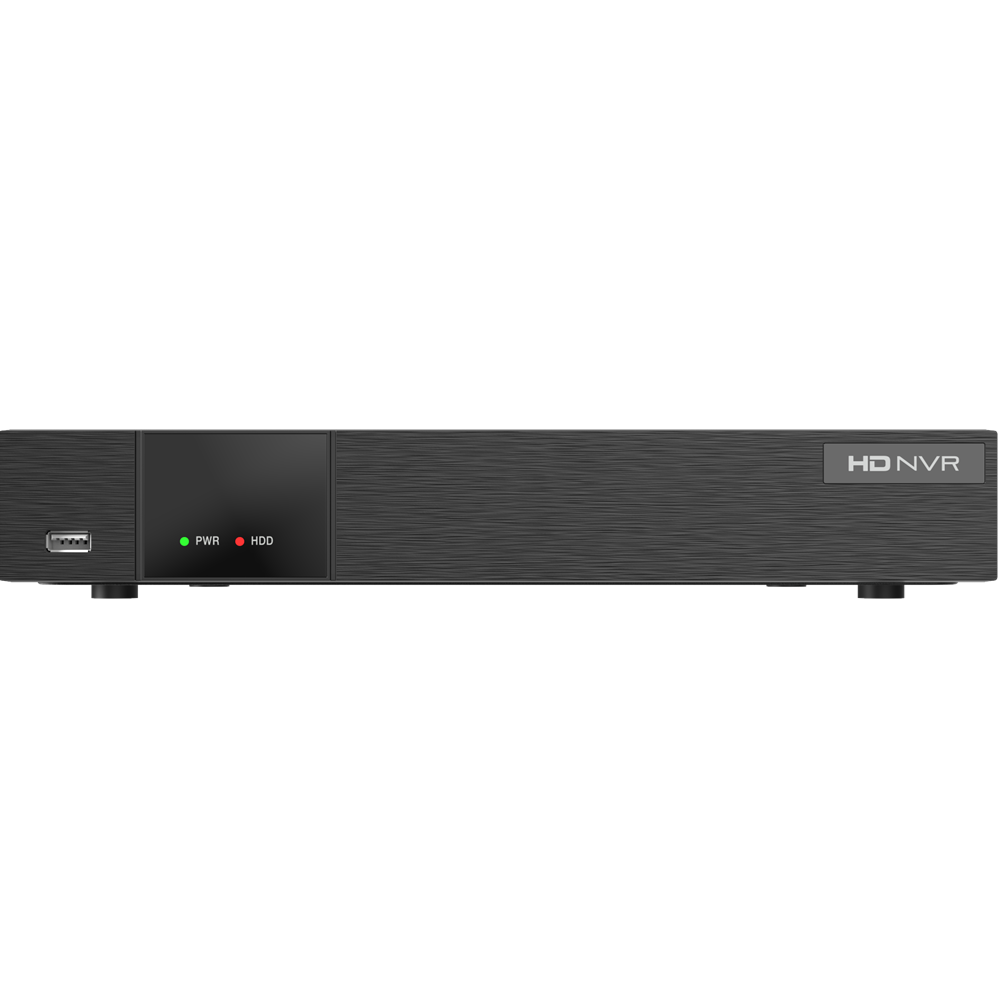

KWIN-8104P4

[KW Series NVR, 4K/8MP, 4CH, 1HDDs, Made in Korea]

  • 4ch real-time recording & playback simultaneously
  • 4 PoE Ports
  • 40Mbps recording bandwidth
  • Max. 4K UHD input / output(HDMI)
  • Support ONVIF Profile S
  • Support H.264, H.265 Dual Codec
  • Support 12TB HDD, 1 internal SATA HDD
  • Support Camera auto detection and simple registration(Add Camera Wizard)
  • Integrated with specialized solutions(Alarm bell, Home Network, etc.)
  • Support wire-wireless USB keyboard connection
  • Support Remote DVR (Remote DVR/NVR control)
  • Industry-first HTML5 Web viewer
  • Made in Korea
Categories: ,

Description

Onvif
Support the latest version of standard ONVIF protocol, which makes it compatible with 3rd party’s software and system.
Complete compatibility test with more than 100 models from 40 manufacturers around the world. Support free integration for new models.

Auto IP / PoE
Support Auto IP feature that automatically adds IPC to NVR. Simply connect IPC to NVR’s PoE port without any complicated network set up.
Easy to install with embedded PoE switch that provides power to IPC through Ethernet cable.

4K UHD  Supported 2CH
Supports 4K UHD video on odd channels (1, 3). 4K UHD is perfect for large area coverage and identifyingobjects at great distances
DVR supports 4M QHD (2x greater than Full-HD) and 4KUHD (4x greater than Full-HD) recording

Remote DVR　Full control of remote DVR/NVR -Patent Application
Share DVR/NVR’s main output on PC and real-time remote control from DVR/NVR’s OSD menu on PC.

Free VMS
Provide Central Monitoring Software (Control Center)for free, supporting Max. 1,024 NVRs with various and great functions.

Made in Korea
Competitive products having reliable quality and reasonable price purely developed and manufactured in Korea.

VIDEO INPUT
Video input Channel 4CH IP video input
Protocol WESP, Onvif Profile S
Format H.264, H.265
Resolution
1st stream: 720p~4K
2nd stream: Max 1280×720
Performance 40Mbps
Stream RTSP over TCP, RTSP over HTTP
PoE 4 PoE ports (Max 15.4W/port, Total 46W)
PoE Mode 802.3af / midspan
VIDEO OUTPUT
Video output Port 1HDMI, 1VGA
Format
HDMI : 4K, 1080p

VGA : 1920×1080, 1280×1024, 1024×768
Modes Duplicate : HDMI, VGA Main
Display Main: 1, 4 split-screen
RECORDING
Compression H.264 / H.265
Resolution
1st stream: 720p~4K
2nd stream: Max D1
Rate Total 120 fps, Max 30fps/ch @ 4K
Bitrate
1st stream : Max. 8Mbps
2nd stream : Max. 2Mbps
Mode Manual&Event / Schedule&Event / Emergency
Schedule 24hrs / 7days
PLAYBACK
Mode Instant Playback / Search
Speed 1/16x, 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x
Search type Time/Calender, Event, Thumbnail(Time, Motion), Text
Block playback 1day ~ 365days
EVENT & ALARM
Event source Motion detection, Sensor input, Video Loss, Text input, AI, Flame, Thermal, System
Event check schedule 24hrs / 7days
Event action Motion detection, Sensor input, Video Loss, Text input, AI, Flame, Thermal, System
Text input POS/ATM support, AVE VSI Pro/Hydra support
SYSTEM ALARM
Event source
HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail
Event action Pop-up Message, Buzzer, E-mail, Mobile Alarm Push
AUDIO
Input/output 1 RCA (0.5 Vpp) input / HDMI & RCA output
Compression G.711u
Direction Both
PTZ
Protocols IP Camera with Onvif protocol & WESP protocol
NETWORK
Interface 1 Fast Ethernet RJ-45 port (10/100Mbps)
Protocol
WESP, HTTP, RTSP/RTP, (Onvif), UPnP, RADIUS, TCP/IP, UDP, ARP, ICMP, DHCP, SMTP, SNMP, SNTP, TLS
DDNS WNS, DynDNS, NoIP, WRS
TX Performance 78Mbps
NTP
Mode : Server / Clinet / Both
Server : Public / Private
Users Total 10 Users (Monitor + Playback) Playback 3 Users
TLS Supported
Service Streaming
 Remote DVR
SECURITY
User level 1 admin, 10 users
User privilege Menu, PTZ, Playback, Power on/off, Copy, Network MIC, Camera Setup
IP filtering 10 IP address ranges
STORAGE & BACKUP
Storage devices 1 SATA HDD
RAID Level Not supported
File system
High-performance proprietary file system
Data-loss protection against power interrupt
Capacity 12TB HDD Supported per SATA Port
Backup type Multi-channel exe file, Single channel avi file, JPEG(Capture)
Backup device 2 USB 2.0 drive (1 front, 1 rear)
FAT32(Max 32GB), NTFS
S.M.A.R.T. Health checking and alarm, Reallocation sector monitoring and alarm
SERIAL & I/O
Serial port 1 RS-485
Sensor input 4 Dry-contacts + sensor of IP camera
Relay output Software-controlled 1 relay output
Max 250V AC / 3A, 30V DC / 3A
CONTROLLER
Device Joystick Keyboard(option), Mouse, IR remote controller(option)
SOFTWARE
HTML5 Webviewer
 Monitoring / Event / PTZ / Playback for browser supporting HTML5
ActiveX Webviewer Monitoring / Event / PTZ / Playback for IE
Smart Phone App. Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android
CMS Control Center, Max. 1024 Units
SDK ActiveX(COM) SDK
ENVIRONMENTAL & PHYSICAL

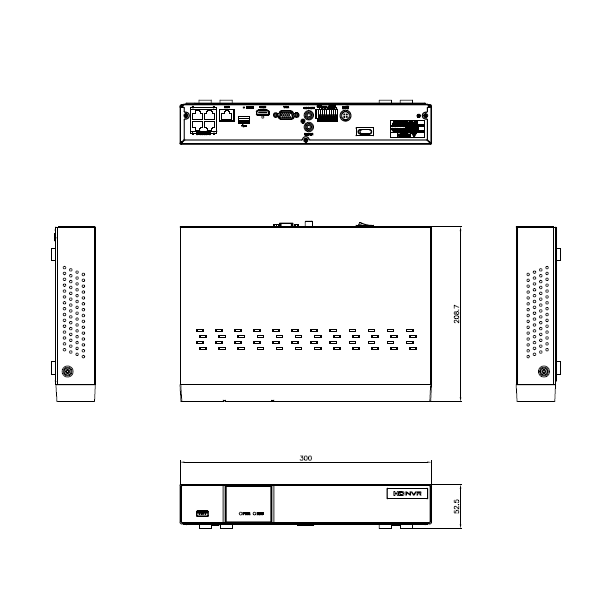

Dimension 300(W)×208.7(D)×49(H)mm
Weight 1kg (No HDD)
Operating temperature 0℃ ~ 40℃ (32°F ~ 104°F)
Operating humidity 90% below, free of condensation
Power DC 48V 1.2A, 50/60Hz
IPFR Not supported
Power consumption Max 4W without HDD (TBD)
Approval(*) KC, FCC, CE
