Vehicle Counting

Counts the floating population of a major area or counts the floating population of multiple areas by summing up.

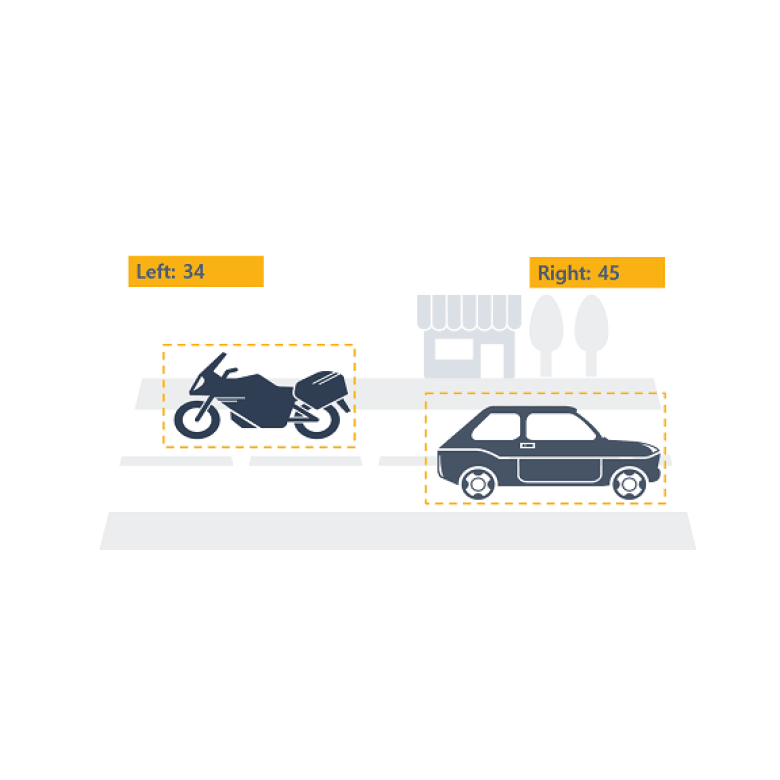

  • You can accurately count objects passing through the counting line in either single or bi-directional mode. The aggregated counting information can be sent to the server in real-time or periodically reported via email or server. Additionally, notifications can be triggered when the number of passing objects exceeds a certain threshold.
  • It accurately calculates the volume of vehicle traffic on roads and in parking lots, providing essential data for estimating visitor numbers, traffic management, urban planning, and more. It can distinguish between vehicles with four wheels and those with two wheels.
Categories: ,

Description

Camera Installations Requirments & Minimum Object

Basic Information

Camera Installation Enviroment

Indoor(O)
Outdoor(O)

Support Camera Type

IP camera(O)
Fisheye camera(X), Thermal camera(X)

Input Resolution

Min 640 x 360 ~ Max. 4K

Input Fram Rate

Min 6fps

Detectable Object Size
① Day
[Car] W 1.5%, H 2.5%
[Bike] W 2%, H 4%
② Night
[Car] W 2.5%, H 4.5%
[Bike] W 3%, H 5%

Min size: 640 x 360 to 1280 x 720 or lower

① Day
[Car] W 2.5%, H 3.5%
[Bike] W 2%, H 4%
② Night
[Car] W 3.5%, H 5.5%
[Bike] W 3%, H 5%
