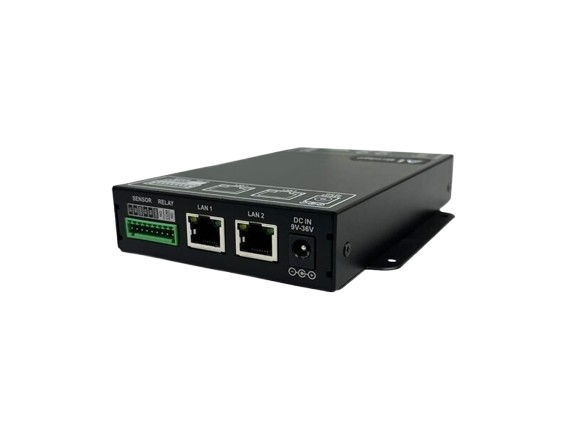

AIB-TE1-04

• Event Action

  • System Events

    Tamper Detection, Alarm In, Virtual Alarm In, Video Loss / Recovery, Disarm, Recurrence,

    Login, System Start

  • Action Handlers

    HTTP, TCP, FTP, E-mail, S3, VMS, Onvif, Audio Back Channel (Camera speaker)

  • Combining Rules with Other Events

    Yes

  • Pre/Post snapshot

    Yes

  • Annotated Video Stream

    Yes

• Video

  • Max. Video Input resolution

    4K @ 30 fps (2M @ 120 fps)

  • Video Input Method

    RTSP, RTSP over HTTP/S, Onvif

  • Supported Input Video Format

    H.265 / H.264

  • Video Output Stream Method

    RTSP over TCP/UDP, RTSP over Websocket, RTSP over HTTP/S

• Audio

  • Audio Input

    1 x Audio Line-In (3.5mm audio phone jack))

  • Audio Output

    1 x Audio Line-Out (3.5mm audio phone jack)

• Interface

  • USB

    1 x USB2.0

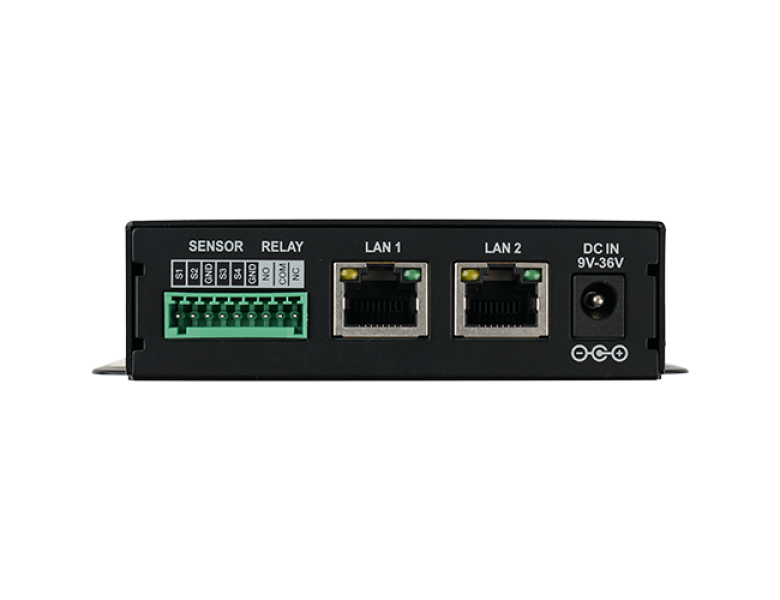

  • LAN

    2 x 10/100/1000 BASE-T Ethernet (ETH1/ETH2)

• Alarm I/O

  • Alarm Input

    4CH, DI(0-30V Input), Pulled up to 5V via 10KOhm

  • Relay Output

    1CH, Dry contact Relay(30VDC/250VAC), NO/COM/NC (Terminal Block)

• Storage

  • Internal SD

    1 x Internal SD Card Slot

  • NVMe SSD

    1 x M.2 M-Key Slot (for M.2 2280 NVMe SSD)

    Recording license 4-ch(OPTION)

• ETC

  • Watchdog

    Yes

  • RTC

    Yes

  • Cooling Fan System

    Fanless Design

  • Factory Reset button

    Yes

  • LED Indicators

    1 x PWR LED (3 Color), 1 x Status LED (3 Color)

• POWER

  • Power Supply

    12V/3.3A adaptor

    DC +9V ~ +36V (DC Input Voltage)

  • Power Consumption

    6.7 Watts(Without NVMe SSD)

• Environment

  • Temperature/Humidity

    -30ºC ~ 70ºC (-22ºF~158ºF ) / 10 ~ 90% NC(Without NVMe SSD)

    -15ºC ~ 50ºC / 10 ~ 90% NC (With commercial NVMe SSD)

• Chassis

  • Dimension(WxDxH)

    94 x 153 x 28 mm

  • Weight(Net/Gross,KG)

    0.45/1.05

• Additional information

  • Mounting

    Desk, Wall

  • Certification

    CE, FCC, KC, UKCA
